Phantom II Custom White

18Hz up to 21kHz. 96 dB SPL.
Compact speaker
￥239,000
Devialet media

仕上げ：カラーを選ぶ

Iconic white
Devialet media

アクセサリー：最適なアイテムを見つける

Legs - Phantom IIPhantom II's stand詳細を見る
在庫切れ
Gecko Phantom Ultimate 98dB洗練されたデザインのGeckoウォールマウント詳細を見る
￥38,900

Devialet Care：延長保証を追加

Devialet Care - Phantom IIProtect your investment詳細を見る
￥17,900
店舗を探す
reassuranceFree returns and exchanges

究極のパワーとコンパクトさ

コンパクトなのに、超強力。Phantom Reactor 900は音響工学の傑作であり、想像を超えるパワーを発揮します。どんな音量でもハイファイサウンドと体に響き渡る重低音を実現できる、唯一の超コンパクトホームサウンドシステムです。タッチボタンが付いており、一度押すだけで自由に操作が可能です。 ディストーションなし、サチュレーションなし、バックグラウンドノイズなし

ABSOLUTE CONNECTIVITY.

Phantom II Custom boasts professional features such as Dante™ network and analog/AES input, is fully compliant with technical integrator requirements, and simply configurable through IP address webpages.

BESPOKE CONTROL.

Phantom II Custom is designed to be operated by third-party devices such as preamps, professional audio DSP, and matrix mixers. It also lets you control your sound system from your network infrastructure via Savant, Control4, Crestron or drivers.

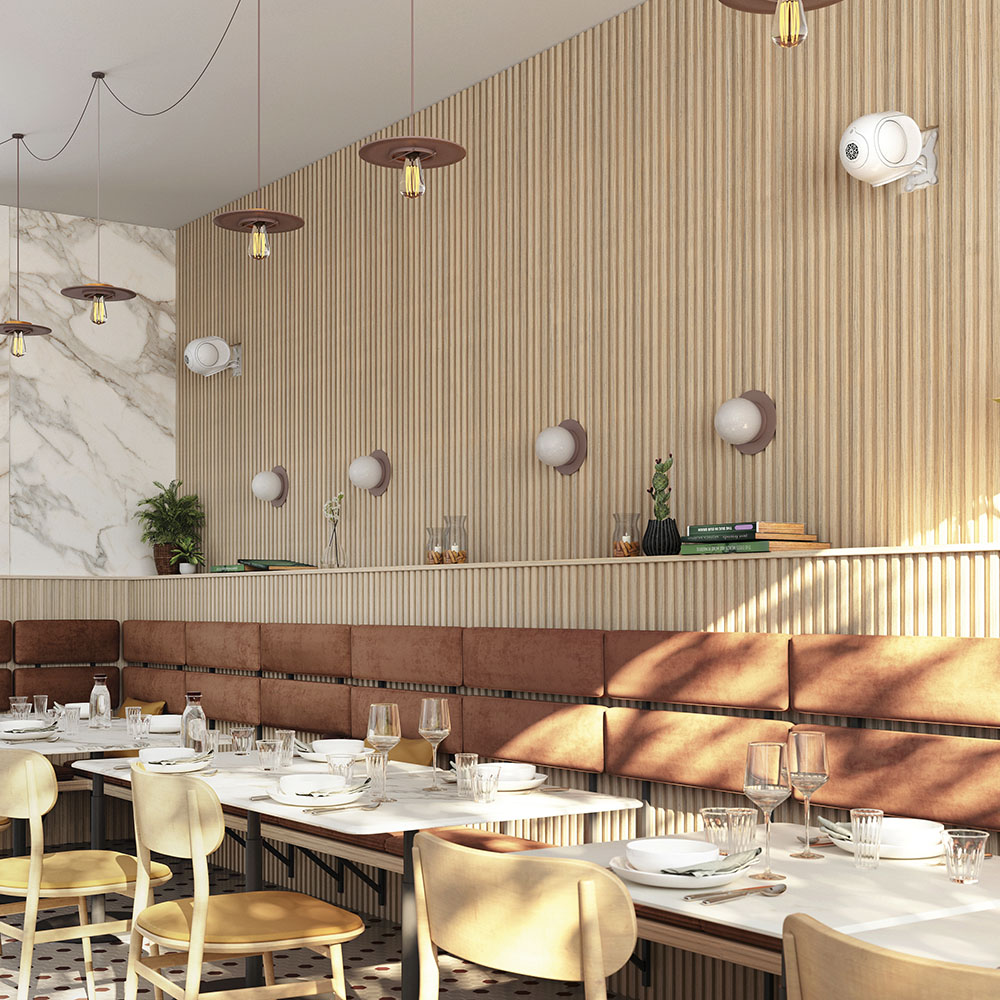

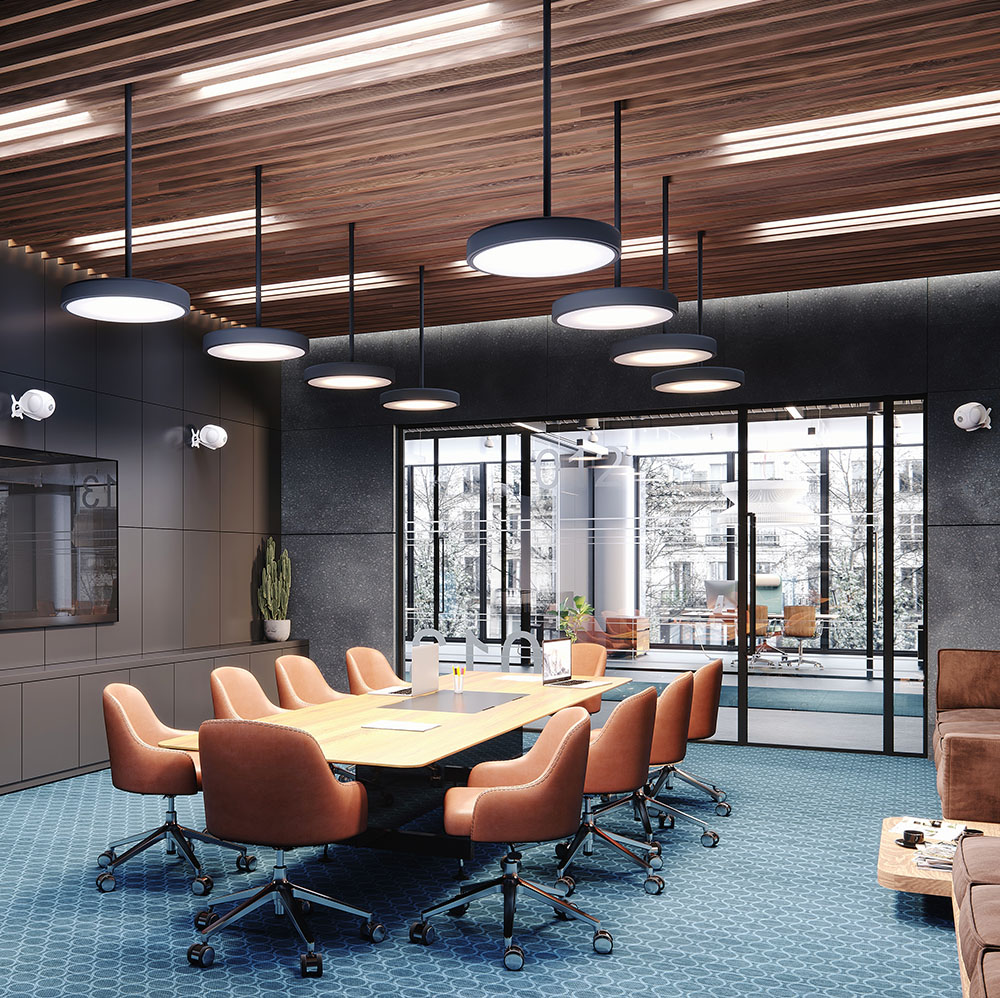

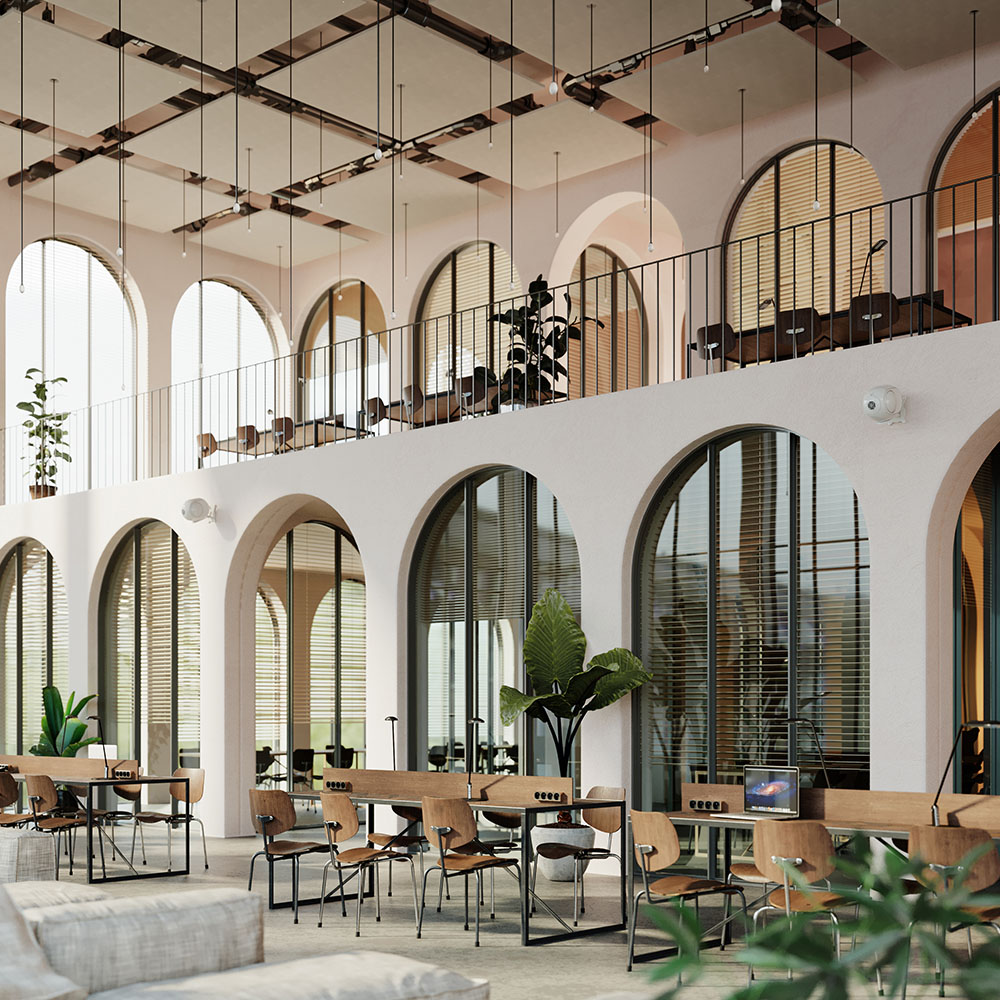

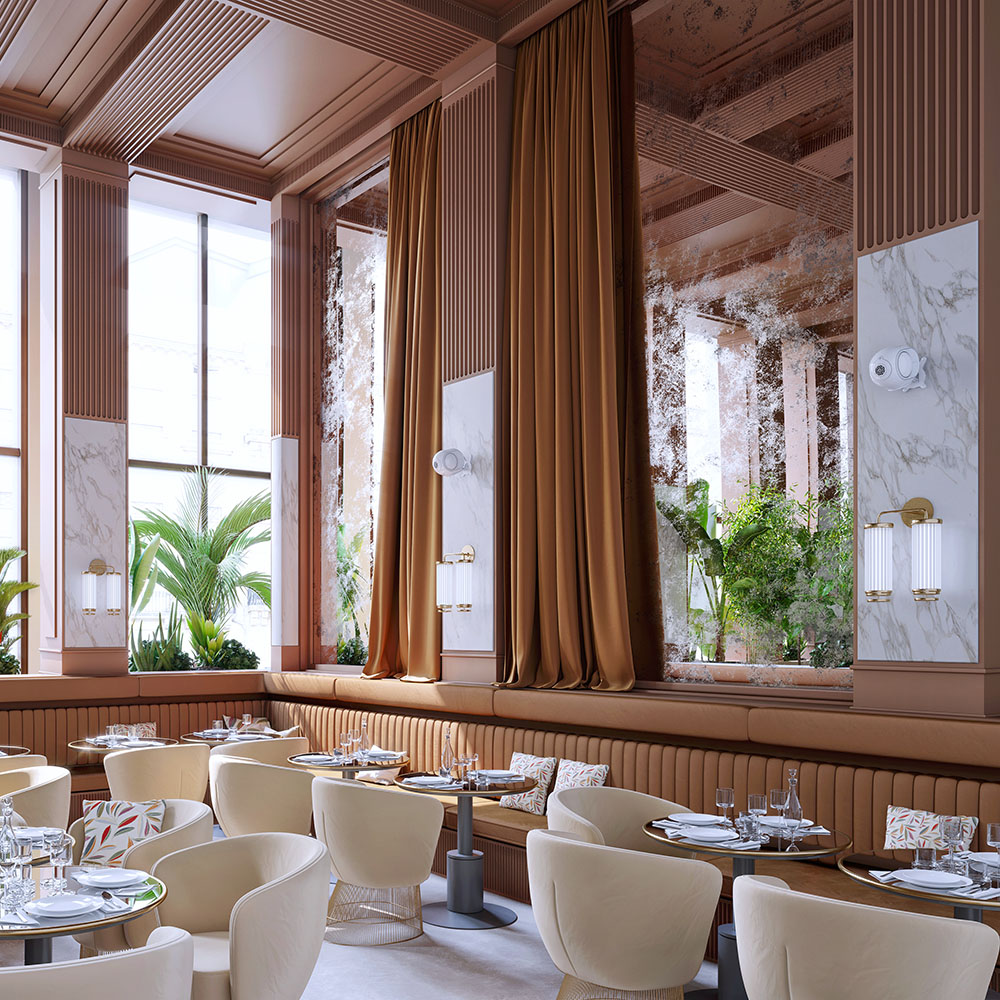

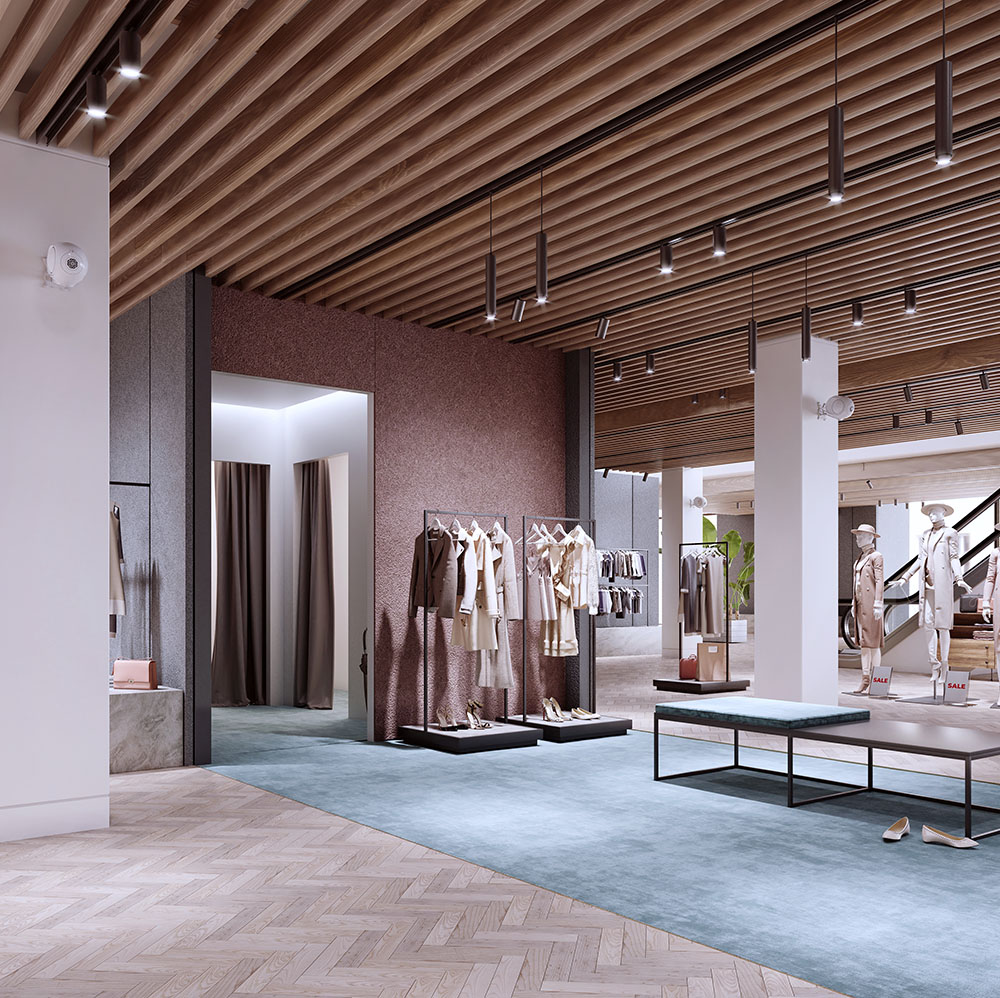

FITS INTO ANY ENVIRONMENT, RELIABLY.

Among available solutions, Devialet chose Audinate's Dante™ network for its reliability in audio streaming on an ethernet network infrastructure. Dante™ helps Phantom II Custom** fit seamlessly into any existing setup, allowing up to 256 channels of HD audio to be streamed over standard ethernet cables. ** Dante™ technology natively integrated into Phantom II Custom.

仕様

ラウドスピーカー

1 x Aluminum Full-Range driver
2 x Aluminum Bass drivers

デジタル・アナログ変換

Devialet DAC embedded in Devialet Intelligence Processor
24bits / 96kHz
THD: -112dB

プロセッサ

ARM Cortex-A9 1.25GHz processor 512MB DDR3-195 dB memory

サイドメッキ

Body: white RAL 9016 | White matte stainless steel sides

Power Supply

IEC 100-240V ~ 50/60Hz

独自テクノロジー

ADH3®; HBI2®; SAM2®; ACE2; EVO®

寸法と重量

寸法

Width: 157 mm | Height: 168 mm | Depth: 219 mm

Weight

4.3 kg

パフォーマンス

最大サウンドレベル

96 dB SPL at 1 meter

増幅パワー

375 Watts RMS

増幅性能

THD+N* : 0.001% | Saturation : 0 | Background Noise 0 dB SPL at 1m (*Total Harmonic Distortion + Noise)

周波数応答（帯域幅）

Bandwidth: 18Hz to 21kHz (@-6dB)
Accuracy in frequency response : ± 1dB from 25Hz to 20kHz

特徴

同期

Admin webpage through Ethernet
Unlimited amount of devices

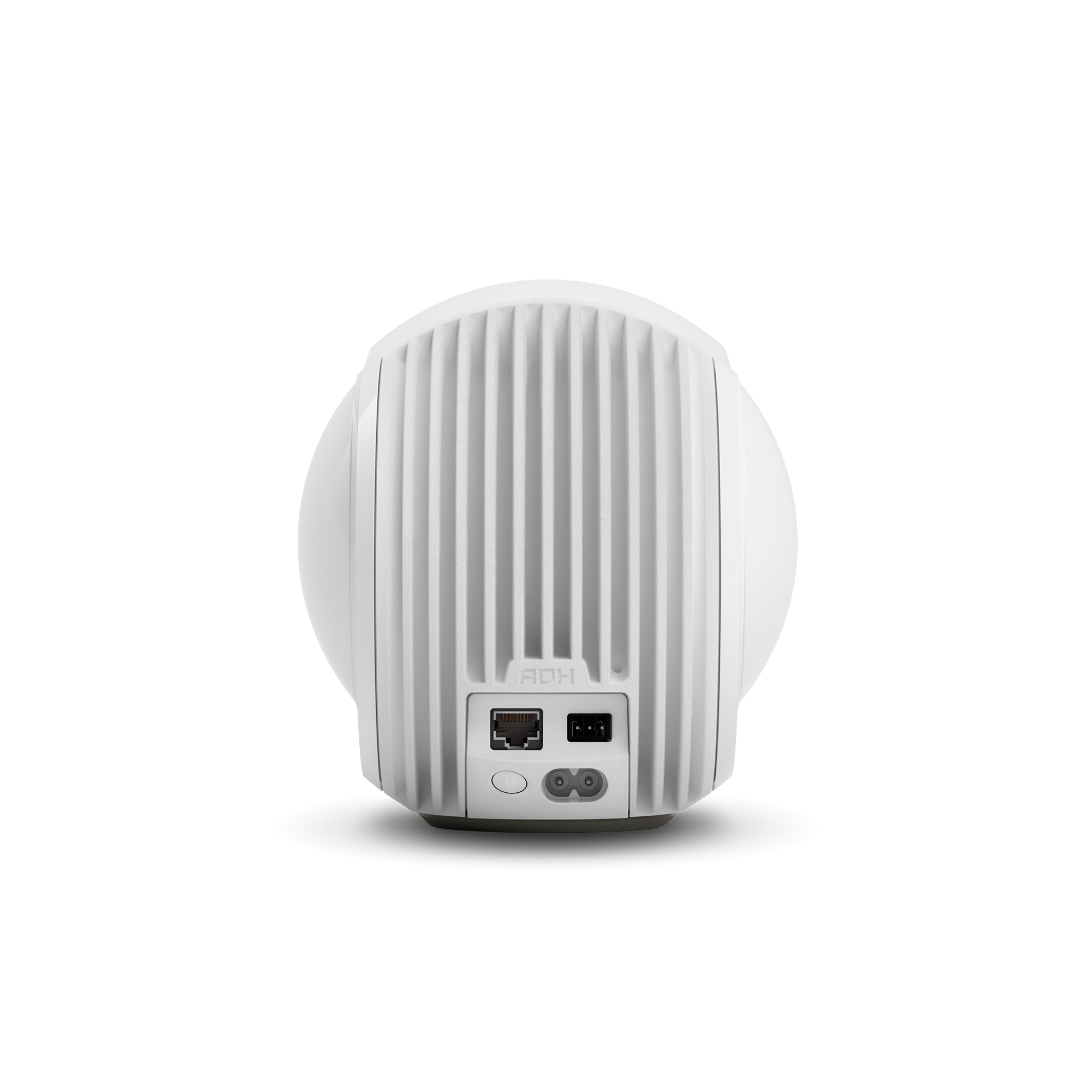

接続性

Network: Ethernet, Dante support
Inputs: Euroblock connector, configurable in
- AES/EBU 110 Ohms balanced digital input
- balanced analog mono input
IP control (Crestron, Control4)

ネットワーク

個人所有のネットワークWi-Fi デュアルバンド (a/b/g/n/ac 2.4GHz & 5GHz)
Ethernet RJ-45 10/100/1000 Mbps (ギガビット)
CPL Homeplug AV2

よくある質問

HOW CAN I CONFIGURE PHANTOM II CUSTOM?

Via an online configuration page (// ip_address), accessible via the IP address of your Phantom II Custom on the web browser of your choice. You can then select your inputs and make your adjustments.

DOES PHANTOM II CUSTOM HAVE A UNIVERSAL POWER SUPPLY, SO IT CAN BE USED WITH ANY WALL OUTLET?

Yes, Phantom II Custom has an IEC universal power supply (90-240 V ~ 50 / 60Hz).

IS PHANTOM II CUSTOM WATER RESISTANT?

Yes, Phantom II Custom is IP44 certified. It is protected against splashing water from all directions.
