NEW FINISH

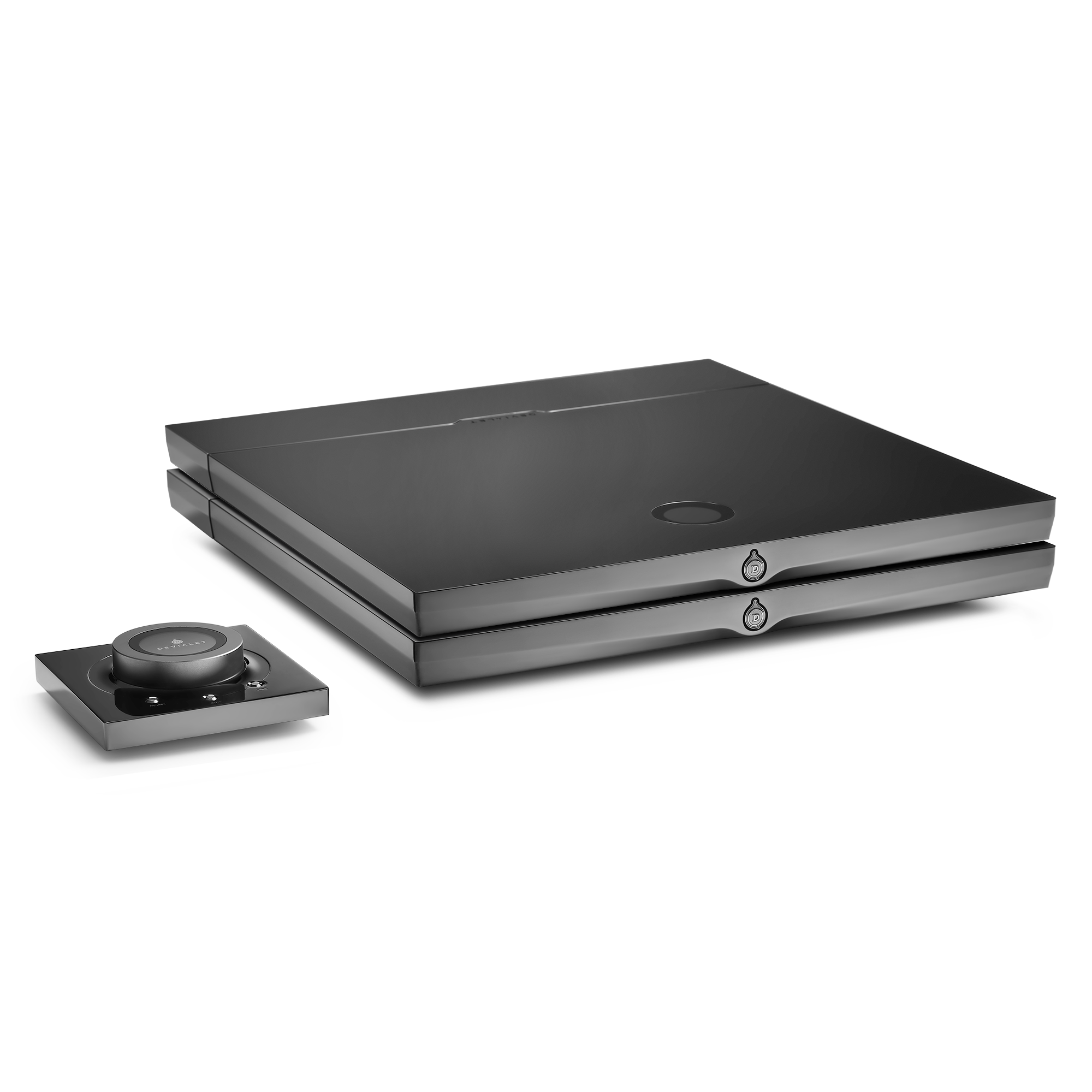

Expert 210 Pro Dual
2x210 W 6 Ω
Graphite Grey
$17,900
免费配送 - 配送期限：20个营业日
Free returns and exchanges
双单声道的放大威力终于不再遥不可及。
Expert 210 Pro 结合两台 Expert 140 Pro，减半每个声道的失真率并增强动力储备，让表现更上一层楼。UPnP
Roon Ready
AirPlay
Spotify Connect
規格
类型
立体声独家技术
ADH®, SAM®, RAM®, EVO®, DAC Magic Wire®流媒体服务
Roon ReadyUPnP
Airplay®
Spotify Connect
菊链
Up to 8 units唱头放大
标准 (MM / MC)预放大输出
Patented Magic Wire Digital / Analogue Converter, D/A T.I. PCM1792Unique high-precision MasterClock with very low jitter: 2ps RMS
Conversion of all inputs into 24-bit/192 kHz
Built-in DSD / PCM conversion
外壳
单块铝外壳顏色和表面處理
NoPower Supply
Universal 90-240Vac – 50/60HzPower cable provided adapted to the country
Patented single stage switching mode topology
High power level: 600W continuous, 4000W peak
尺寸及重量
Dimension
长：383mm | 宽：383mm | 高：40mmWeight
5.65公斤连接
wi-fi
2.4GHz / 5GHz 802.11ac, 适用802.11a/b/g/n以太网
RJ45 10/100 Mbps 以太网输入适用 Devialet AIR 通用流转换器支持格式：16-bit/44.1 kHz PCM 至 24-bit/192 kHz PCM
usb
USB 音频 2.0 异步超低延时
双向式模拟源数字化
数字同轴输入
支持格式：16-bit/44.1 kHz PCM 至 24-bit/192 kHz PCM
DSD64 1bit/2.822400MHz 和 1bit/3.072000MHz
数字光学输入
支持格式：16-bit/44.1 kHz PCM 至 24-bit/192 kHz PCM
支持格式
Up to 32bits / 192kHz PCM (USB)Up to 24bits / 192kHz PCM (Roon Ready, UPnP, Coaxial)
Up to 24bits / 96kHz PCM (Optical)
Up to 1bit / 3.072000MHz DSD64 (USB, Coaxial)
模拟输入
Up to 1x RCA stereo灵敏度可通过配置器调整
标准唱头放大 (MM / MC)
扬声器输出
4mm 香蕉插头、剥离电缆或叉形连接器可兼容所有扬声器，从 8Ω 至 2Ω
短路保护
有源滤波可用
家庭智能化
Up to 1x RS232 3.5mm 115200 bauds （可通过配置程序获得文档）触发器
3.5mm 触发连接器Trig In / Out
表現
功率
2x210 Watts RMS 低于 6Ω全功率失真
0.00025% THD+NDistortion at full power
0,0001% (10W / 6Ω)10W失真
0.0001% THD+NDistortion at 10V
0.00025% THD+N信噪比
133dB输出阻抗
0.001Ω阻尼因素
8000带宽
DC-30kHz @ -0.1dBDC-95kHz @ -3dB
相位
0.2° at 20kHz0.9° at 40kHz
热变形
低于测量阈值包装内容
- 2 台 Devialet Expert 140 Pro 1
- 个 Expert Remote （3 AAA 电池 LR03 1.5V 提供）
- 1根 用于音频的数字同轴电缆
- 1根 用于指令的模拟3.5mm电缆
- 1 本用户手册
- 1 本保修册（2 年）
- 2 张 SD
- 卡 2 根电源线
- 2 副手套
- 2 块微纤维布
常见问题
Why is the output power in dual-mono mode not always twice the output power of the stereo mode?
The ideal situation is to have no limitation in terms of thermal dissipation and current availability. This is the case with the 250 Pro where the output power in dual-mono is then 4 times higher than the output power in stereo (the output power P goes from 250W to 1000W as the output voltage U is multiplied by 2 in dual-mono and P=U2/R). With the 220 Pro, the casing is limiting the thermal dissipation in dual-mono mode and therefore the output power is only multiplied by 2. With the 140 Pro, the class D board is limiting the current availability and therefore the output power is only multiplied by 1.5.
